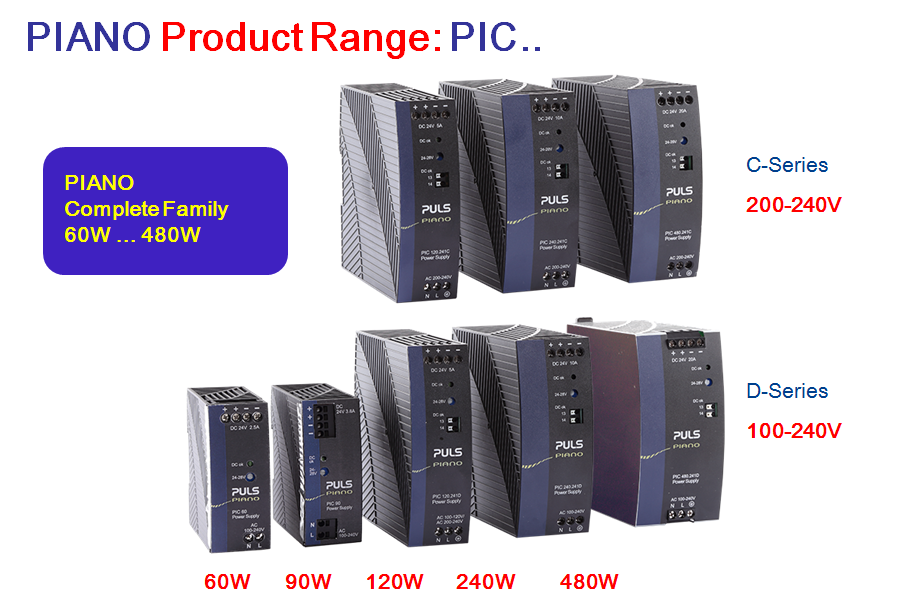

PLUS DC POWER SUPPLY
Technology Overview

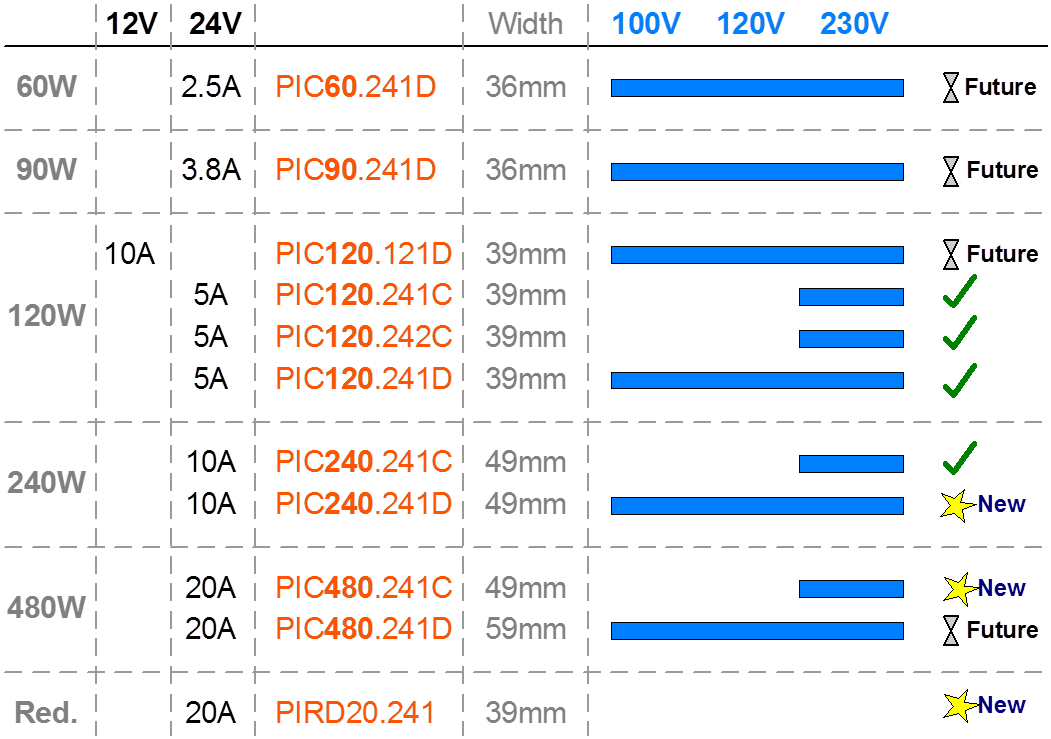

| PIC |
60..D |
90..D |
120..C |
120..D |
240..C |
240..D |
480..C |
480..D |
| Converter |
Flyback |
Flyback |
Flyback |
Flyback |
FlyForw. |
LLC |
LLC |
LLC |
| Efficiency |
0.92 |
0.925 |
0.905 |
0.923 |
0.914 |
0.952 |
0.957 |
0.95 |
| Input range |
Wide |
Wide |
Single |
Auto sel. |
Single |
Wide |
Single |
Wide |
| Harmonics |
Yes |
Yes |
Yes |
Yes |
No |
Yes |
Yes |
Yes |
| Inrush |
Passive |
Passive |
Passive |
Passive |
Passive |
Active |
Active |
Active |
| Low temp. |
-10°C |
-10°C |
-10°C |
-10°C |
-10°C |
-25°C |
-25°C |
-25°C |
| Output Rectifier |
MOS |
MOS |
Diode |
MOS |
Diode |
MOS |
MOS |
MOS |
| DC-OK Relay |
No (Yes) |
No (YES) |
No (YES) |
Yes |
Yes |
Yes |
Yes |
Yes |
| Housing |
Polycar. |
Polycar. |
Polycar. |
Polycar. |
Polycar. |
Polycar. |
Polycar. |
Metal |
| Width |
36 |
36 |
39 |
39 |
49 |
49 |
49 |
59 |
